SCREEN WINCH SYSTEM
FOR MAJOR PRO-C

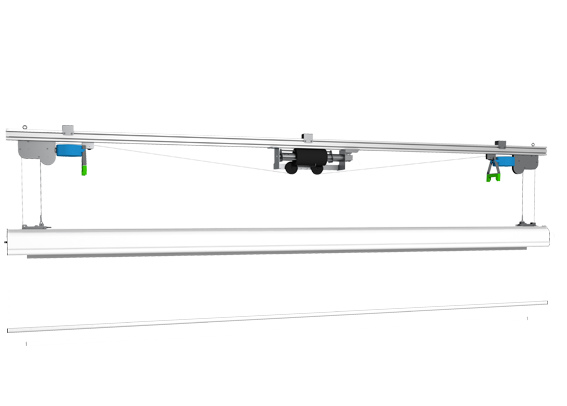

This SCREEN WINCH SYSTEM for Major Pro-C is a particular lift that enables to lower until 7 mt. electrical screens from 500 cm. to 700 cm. of width. A safety device is built-in in order to offer maximum security in case of any failure of the mechanism. The Screen Winch is supplied with a manual switch but can be also ordered with an external multichannel RF remote control.
• MOTOR POWER → 85 Nm
• MOTOR SPEED → 17 rpm
• POWER SUPPLY → 230V / 50 Hz
• CONSUMPTION → 450 W
• CERTIFICATION → IMQ
• TWO STRONG STEEL CABLES DIAMETRE → 3 mm. – Breaking test load: 350 kg. for each cable
• MAXIMUM LOAD THAT CAN BE HUNG TO THE WINCH → 125 Kg
