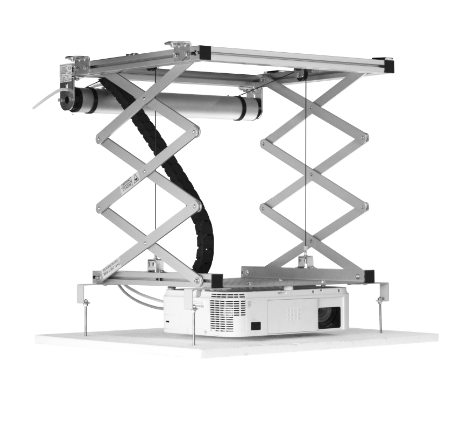

PROJECTOR LIFT SI-100

The PROJECTOR LIFT SI-100 is a versatile and innovative product that enables the installation of projectors in environments where particular aesthetical solutions are needed. The product has been developed to be installed inside false ceilings in order to hide projector, lift and cables, thus granting the best aesthetic and practical solution. SI-100 is supplied with an extremely silent motor that allows a descent from a minimum of 16 cm. to a maximum of 90 cm. An interesting element of this lift is a cables gathering system with a raceway where to put the cables of the projector, so they will be hidden and tidy gathered together when the projector lift is going up. The lift is supplied with two safety screws.
* Ceiling cover plate is NOT included


• POWER SUPPLY → 220-230V – 50HZ

• MAXIMUM CONSUMPTION → 156 W

• TORQUE → 10 Nm

• MOTOR SPEED → 17 rpm

• DIMENSIONS LIFT CLOSED → 575x155x554 (WxHxD in mm)

• DIMENSIONS LIFT OPENED → 575x970x554 (WxHxD in mm)

• MOUNTIN PLATE TOTAL DIMENSIONS → 420×450 (WxD in mm)

• MOUNTIN PLATE UPPER INTERNAL DIMENSIONS → 350×450 (WxD in mm)

• MAXIMUM SIZE FIXING POINTS OF PROJECTOR → 320×350 (WxD in mm)

• MAXIMUM PROJECTOR DIMENSIONS → 560×550 (WxD in mm)

• MAXIMUM CAPACITY → 15 Kg

• NET WEIGHT OF THE PROJECTOR LIFT → 12 Kg

• CABLE MANAGEMENT SYSTEM INCLUDED → 20×18 (WxH in mm internal dimensions)
