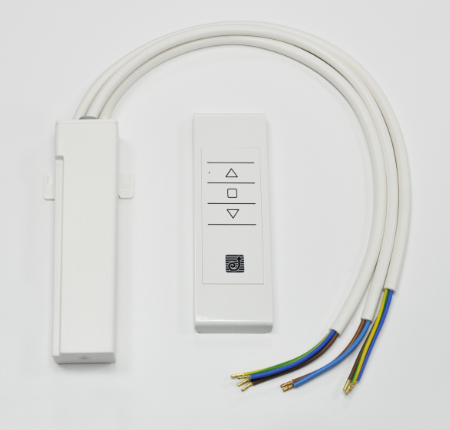

KIT RF REMOTE CONTROL WITH EXTERNAL RECEIVER (868MHZ)
The KIT RADIO EXTERNAL is composed by a radio frequency handheld remote control and a receiver that should be connected to the product you would like to radio-control. The receiver can be easily hidden thanks to its small dimensions (35x25x135 cm. WxDxH). This kit can be used with the whole range of electric screens and with all the projector lifts. The remote control receiver offers the possibility to manage the connected equipment also by a pulls switch (not included) or via a room control system.
• Power supply 3V mod. CR2032
• Battery autonomy (years) 2
• Frequency 868,30 MHz
• Radiated power 0,150 mW
• International protection IP40
• Working range radius (int/ext) 20 m / 200 m
• Channels 1 2 5
• Operating temperature o -5°C /+40°C
• Handheld remote dimension: 42x15x122 mm. – Weight 57 gr
• External receiver dimension: 52x27x136 mm. – Weight 160 gr
DATA SHEET
ASSEMBLY INSTRUCTIONS
