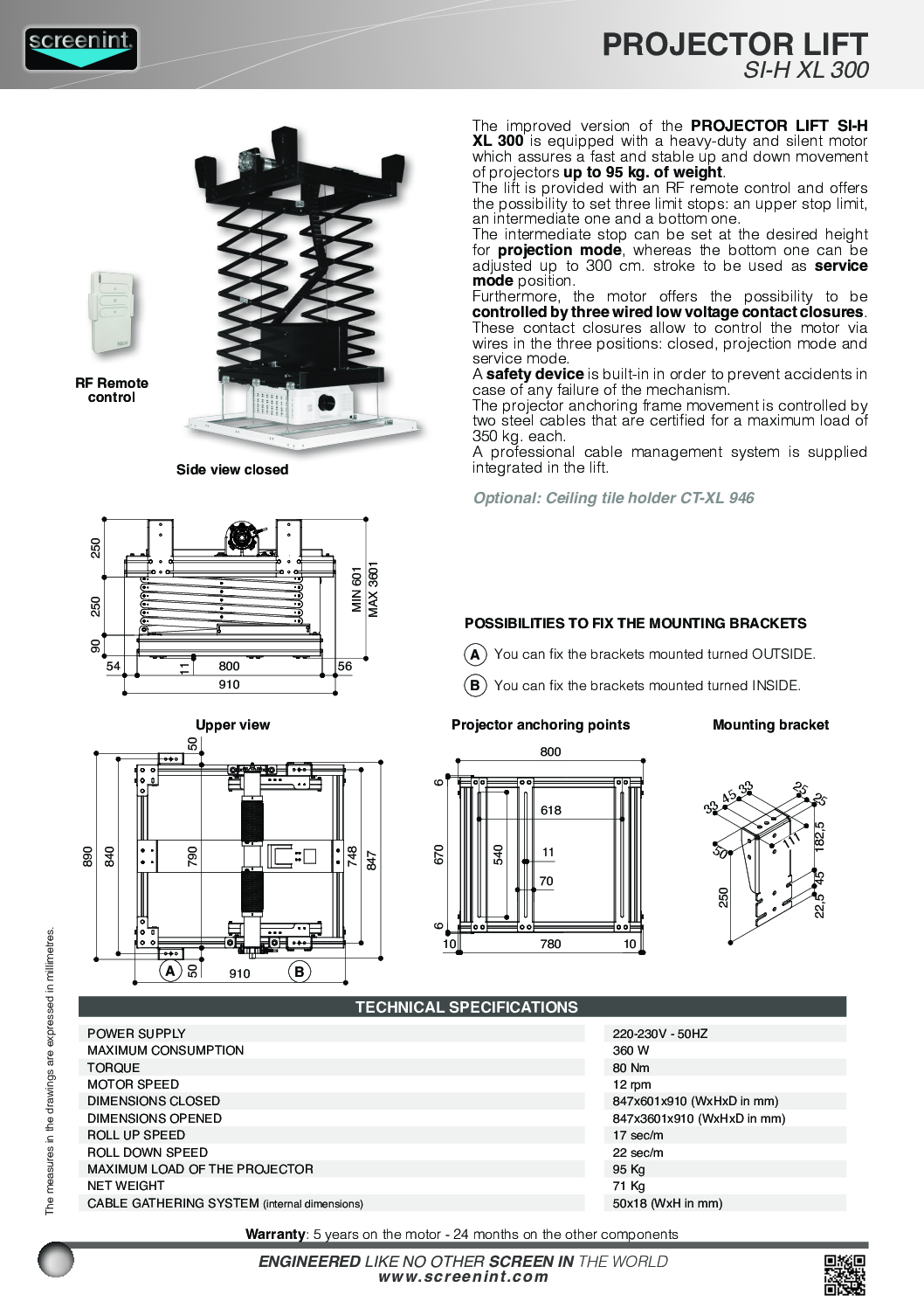

PROJECTOR LIFT SI-H XL 300

The heavy PROJECTOR LIFT SERIES SI-H XL 300 is a very strong and reliable new range of lifts specifically developed for large venue applications where large projectors need to be moved. These lifts are equipped with heavy-duty but silent motor which assures a fast and stable up-down movement of the projector. Also a SAFETY DEVICE is built-in in order to offer maximum security in case of any failure of the mechanism. The projector anchoring frame movement is controlled by two strong steel cables that are certified for a maximum load of 350 kg. each. A unique and professional cable management system is supplied integrated in the product. This allows to connect safely and tidily the projector with the power and signal cables.


Technical specifications

POWER SUPPLY – 220-230V – 50HZ
MAXIMUM CONSUMPTION – 265 W
TORQUE – 60 Nm
MOTOR SPEED – 11 rpm
DIMENSIONS CLOSED – 798x565x890 (WxHxD in mm)
DIMENSIONS OPENED – 798x3565x890 (WxHxD in mm)
ROLL UP SPEED – 19 sec/m
ROLL DOWN SPEED – 24 sec/m
MAXIMUM LOAD OF THE PROJECTOR – 70 Kg
NET WEIGHT – 70 Kg
CABLE GATHERING SYSTEM (internal dimensions) – 50×18 (WxH in mm)
