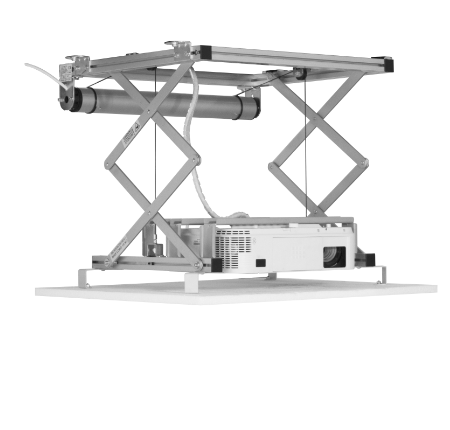

PROJECTOR LIFT SI-30
The PROJECTOR LIFT SI-30 is a versatile very compact projector lift that enables the installation of projectors in environments where particular aesthetical solutions are required. The product has been developed to be installed inside a false ceiling where very few space is available. You need inside the false ceiling only 13 cm. of minimum height to install lift and projector. The SI-30 is supplied with an extremely silent motor that allows a descent of maximum 30 cm. The lift is supplied with two safety screws.
* Ceiling cover plate is NOT included
• POWER SUPPLY → 220-230V – 50HZ
• MAXIMUM CONSUMPTION → 156 W
• TORQUE → 10 Nm
• MOTOR SPEED → 17 rpm
• DIMENSIONS LIFT CLOSED → 575x130x554 (WxHxD in mm)
• DIMENSIONS LIFT OPENED → 575x480x554 (WxHxD in mm)
• MAXIMUM SIZE FIXING POINTS OF PROJECTOR → 370×380 (WxD in mm)
• MAXIMUM PROJECTOR DIMENSIONS → 410×440 (WxD in mm)
• MAXIMUM CAPACITY → 15 Kg
• NET WEIGHT OF THE PROJECTOR LIFT → 11 Kg
• CABLE MANAGEMENT SYSTEM INCLUDED
